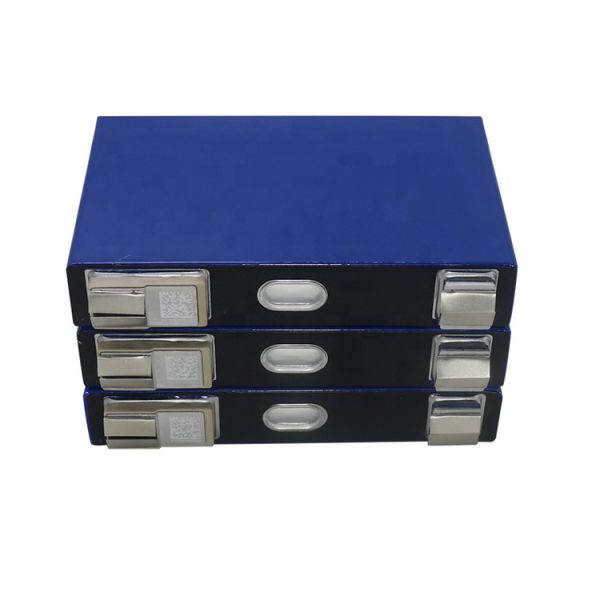

CALB NCM Battery Cell 175WH Rechargeable Prismatic 3C Charging Rate

Product Categories
Shenzhen Passional Import And Export Co., Ltd.
Contact Now

CALB NCM Battery Cell 175WH Rechargeable Prismatic 3C Charging Rate

  • 1
  • 2

Brand Name : CALB

Certification : MSDS

Model Number : 09081220

Place of Origin : China

MOQ : 4-256 Pieces

Price : Negotiable

Keywords : Li Ion Battery Cell

Application : Electric Folklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, electric vehicles, Home Appliances, SUBMARINES

Battery Size : 148*27*98MM/148*27*102

Weight : 0.88KG

Nominal Voltage : 4.2 Volt

Nominal Capacity : 50ah

Cycle life : 1000times

Size : 148*27*98mm

Battery type : NMC

Apllication : E-bicycle E-scooter

Discharge rate : 1-3C

Max discharge current : 3C(3 minutes)

Selling Units : Single item

Single package size  : 5X12X18 cm

Single gross weight : 1.100 kg

Origin : China

Contact Now

3.7V 50AH 175WH CALB 3C NMC Rechargeable Prismatic Lithium Ion Battery

Li-Ion Battery Cell Description:

3.7V 50AH 175WH CALB 3C NMC Rechargeable Square Lithium Ion Battery can be used in Engine Start Battery, Electric Bike/Motorcycle/Scooter, Golf Cart/Trolley, and Power Tools.UPS, Solar and Wind Power System, RV, Large RV Wait.

Li-Ion Battery Cell Parameter:

Keywords:

Li-Ion Battery Cell

Application:

Electric Forklifts, OTHER, Golf Carts, Electric Power Systems, Power Tools, Electric Bicycles/Scooters, Toys, Solar Energy Storage Systems, Electric Wheelchairs, BOATS, Electric Vehicles, Home Appliances, SUBMARINES

Battery Size:

148*27*98MM/148*27*102

Weight:

0.88KG

Nominal Voltage:

4.2 Volt

Nominal Capacity:

50ah

Cycle Life:

1000times

Size:

148*27*98mm

Battery Type:

NMC

Application:

E-bicycle E-scooter

Discharge Rate:

1-3C

Max Discharge Current:

3C(3 Minutes)

Selling Units:

Single Item

Single Package Size :

5X12X18 Cm

Single Gross Weight:

1.100 Kg

Origin:

China

Model No. CALBLFP72 CALBLFP80 CALBLFP100 CALBLFP180 CALBLFP200
Rated Capacity 72Ah 80Ah 100Ah 180Ah 200Ah
Nominal Voltage (V) 3.2V 3.2V 3.2V 3.2V 3.2V
Chemistry LiFePo4 LiFePo4 LiFePo4 LiFePo4 LiFePo4
Internal Impedance ≤0.4mΩ ≤0.4mΩ ≤0.4mΩ ≤0.5mΩ ≤0.6mΩ
Shell Material Aluminum Aluminum Plastic Plastic Plastic
Dimension? (mm) H*W*D 220x135x29 220x135x29 216x142x67 279x180x71 279x182x71
Weight(Kg) 1.75±0.15 kg 1.87±0.15 kg 3.3±0.15 kg 5.6±0.15 kg 5.7±0.15 kg
Maximum continuous discharge current 100A (1C) 80A (1C) 100A (1C) 180A (1C) 200A (1C)
Maximum peak discharge current 216A (3C) 240A (3C) 200A (2C) 360A (2C) 400A (2C)
Maximum charge current 72A (1C) 80A (1C) 100A (1C) 180A (1C) 200A (1C)
Charge voltage 3.65V 3.65V 3.65V 3.65V 3.65V
End of discharge voltage 2.5V 2.5V 2.5V 2.5V 2.5V
Charging temperature -5°C~60°C -5°C~60°C -5°C~60°C -5°C~60°C -5°C~60°C
Discharging temperature? -30°C~60°C -30°C~60°C -30°C~60°C -30°C~60°C -30°C~60°C

Li-Ion Battery Cell Factory Introduction:

Shenzhen Paisheng Import & Export Co., Ltd. specializes in the production of various 3.7V and 3.2V lithium-ion batteries, chargers, battery BMS and battery packs, etc. The products are widely used in digital products, laptop computers, electrical and electronic products, lighting equipment, toys, household appliances and emergency equipment. We have more than 10 years of battery manufacturing experience, we can assemble batteries and batteries according to your design and requirements.

CALB NCM Battery Cell 175WH Rechargeable Prismatic 3C Charging Rate

​

CALB NCM Battery Cell 175WH Rechargeable Prismatic 3C Charging Rate
